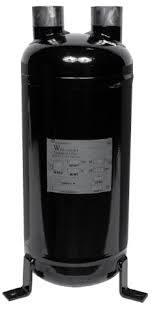

Accumulator - Westermeyer - 3-1/8" ODS - 31 Bar

Product Code	A10-31
Description	Accumulator - Westermeyer - 3-1/8" ODS - 31 Bar
Unit	Each
Notes	Suction line accumulators are designed to act as a temporary holding vessel between the outlet of the evaporator and the inlet of the compressor. During flood back conditions, the accumulator traps the liquid charge and allows it to be evaporated and fed to the compressor at a controlled rate. The internal U-tube includes an orifice, which ensures proper metering of the oil back to the compressor. The accumulator should not be sized for less than 50% of the total system charge. Size the accumulator for minimum pressure drop. Accumulator capacities below are rated at a 1 psig drop, which facilitates proper oil return. The minimum capacity is the lowest amount that will ensure proper oil return. Welded and brazed design for higher strength, Nitrogen tested for cleanliness, Nickel plated connections, Screened orifice for proper oil return, Powder paint finish Connections - 3-1/8" ODS Maximum working pressure - 450 PSI (31 bar) Dimensions - 273mm diameter x 635mm H
Web URL	http://westermeyerind.com/
Documents	638_westermeyer_product_catalogue UStamp
